50 Series Feeder

Request Information >

Our 50 series feeders is our smallest feeder to date. The design offers a 50mm (2”) in diameter feeding disc. The base feeder design is sized to feed low rate feeding applications 0.002 to 1.0lb/hr (1g/hr to 453g/hr). All rates can vary based upon the density, flow-ability, and size of material. The 50 series is the size of a standard coffee mug the mounting ability holds unlimited possibilities! No auger or vibratory feeders can match the 50’s capabilities, in terms of size, feeding capability and repeat-ability. All of Orbetron’s Disc series feeders are designed to handle bulk materials ranging from powder to pellets. This rate can vary based upon the density, flow-ability, and size of material.

Description

Our 50 series feeders is our smallest feeder to date. The design offers a 50mm (2”) in diameter feeding disc. The base feeder design is sized to feed low rate feeding applications 0.002 to 1.0lb/hr (1g/hr to 453g/hr). All rates can vary based upon the density, flowability, and size of material. The 50 series is the size of a standard coffee mug the mounting ability holds unlimited possibilities! No auger or vibratory feeders can match the 50’s capabilities, in terms of size, feeding capability and repeatability. All of Orbetron’s Disc series feeders are designed to handle bulk materials ranging from powder to pellets. This rate can vary based upon the density, flowability, and size of material.

Design

  • Standard disc sizes include 24, 12, & 6 holes per revolution. Special disc sizes are designed based upon your feeding needs.

  • Orbetron offers our engineering expertise to help handle your unique application needs.

  • Orbetron designs our disc feeder to be quick exchange capable, and easy clean capable.

  • designs our disc feeder to be quick exchange capable, and easy clean capable.

  • Incorporating our 3D printing technology, we can design and produce a 3D model of this unit based upon the design requirements.

Specification

  • 110/220 Vac single phase 50/60 hz

  • Stepper Motor Drive

  • Volumetric/Gravimetric Capable (Batch/Continuous)

  • Quick Exchange Housing

  • Dose Power to Pellet Materials

  • Multiple Mounting Capabilities

  • Separate Mounted Controls

Controls O50

  • Separate Mounted Controls

  • HMI Color Touchscreen

  • PLC Control with I/O for Stepper, DC, or AC Motors

Options

  • External Alarm Audible & Light

  • Spare Station for Easy Changeover

  • Optional Agitatio for Special Materials

  • Continuous running software

  • Extension Cable

  • SS Hopper

  • Small loader adapter

  • Multi-component capability up to 4 units (Additional units upon request)

Application

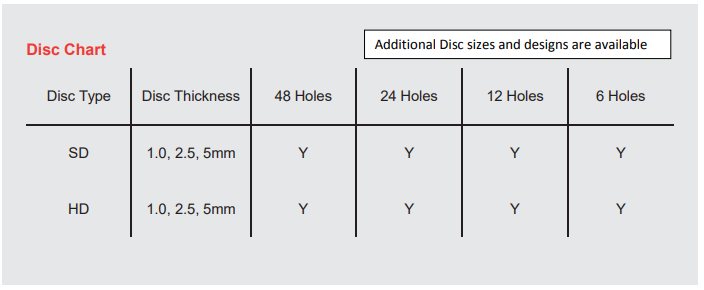

50 Series Disc Chart.png
