Orbetron Gravimetric Feeder OVF220 Series

Request Information >

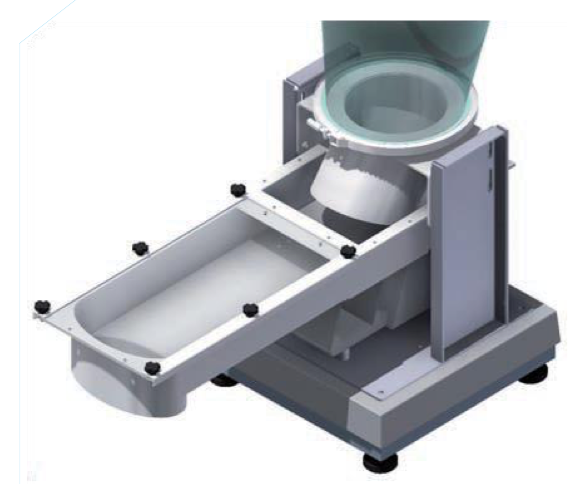

The Orbetron Vibratory Feeder OVF 220 is suitable for dosing of free-flowing flakes, fiber, glass fiber and as well as fragile chips and abrasive grained powder.

Description

The compact, modular design gives the operator the flexibility to meet changing process requirements by adjusting the frequency range, achieving a wider feed rate range. The vibration feeder assures a consistent dosing of easy-flowing and fragile bulk materials. The electromagnetic vibration drive with a permanent magnet and spool is controlled via a frequency signal from the Orbetron O2 control. Thanks to a O2 controller it is possible to adjust the flow rate and therefore, the dosage of the components in a precise and reliable. The vibratory feeder series OVF are widely used in the chemical, pharmaceutical, food, plastics and packaging included inside the packaging.

Design

  • Compact and modular construction in stainless steel AISI 304

  • High modularity for easy dismantling and cleaning

  • All parts in material contact are in stainless steel AISI 304

  • Operating temperature -10°C to +50°C

  • Working load on tray up to 8 kg

  • Weight 41 kg • Hopper volume 50 liters (optional)

  • Protection class lP 65

  • Power supply 230VAC,50 - 60 Hz

  • Conforms to directives

Options

  • Stainless steel AISI 316 L

  • Hopper extension modules in the sizes of 20l, 50l, 75l, 85l, 100l, 135l, 185l, special hoppers are on request available

  • Flexible connection sleeves

  • All sealing which are in material contact in silicon free style

  • 230-460V 3PN 50-60Hz AC 370W motor with frequency inverter

  • Different color on request

  • FDA certification according FDA CFR 21 #178.3570

  • ATEX Zone inside 3D T140°C, 2D T140°C, AS75 2D T140°C/ 2G T4, 1D T140°C/2G T4

  • ATEX Zone outside 3D T140°C, 2D T140°C/2G T4

Application

  • Volumetric continuous or batch

  • Gravimetric loss-in-weightcontinuous

  • Gravimetric loss-in-weight batch

  • Gravimetric gain-in-weight
